零件材質
| 零件PART | 材質MATERIAL | |
|---|---|---|
| 閥體 | Body | Cast Bronze |
| 閥蓋 | Bonnet | Cast Bronze |
| 閥桿 | Stem | DZR(抗脫鋅) |
| 閥盤 | Disc | DZR(抗脫鋅) |
| 迫緊 | Packing | PTFE |
| 手輪 | Handwheel | Cast Iron/ALUMINUM |
最高工作壓力
| 120°C以下水、油、氣 / 120°C below. water oil gas. | 125S/200WOG 10 kgf/cm² |
| 閥體測試 / Body test | 21 kgf/cm² (HYD.) |
| 閥座測試 / Seat test | 14 kgf/cm² (HYD.) |

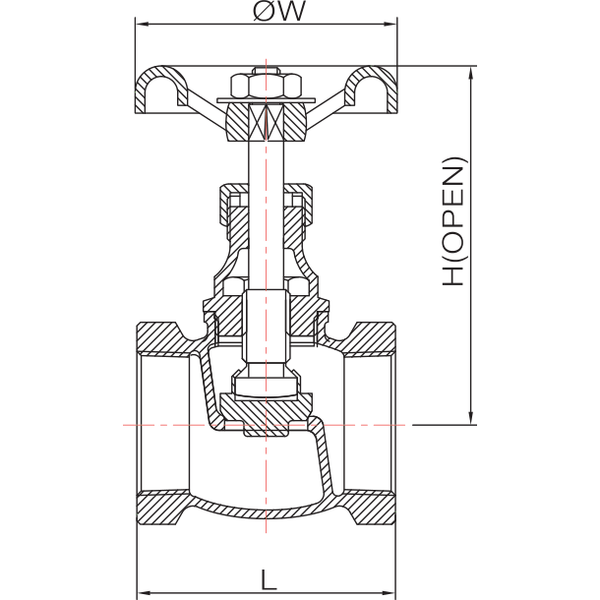

尺寸表
| 尺寸 | 1/2 | 3/4 | 1 |
|---|---|---|---|
| L | 50 | 57 | 65 |
| H | 73 | 79 | 102 |
| ØW | 54 | 61 | 70 |
單位:mm(±2mm)

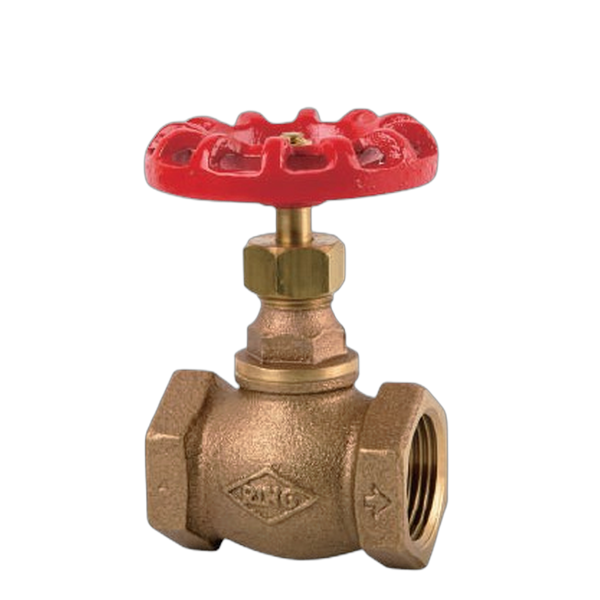

Rising stem, Screwed bonnet, Swivel disc, Threaded ends；# DZR=de-zincification resistant brass；＊可承製法蘭口型號為363。
