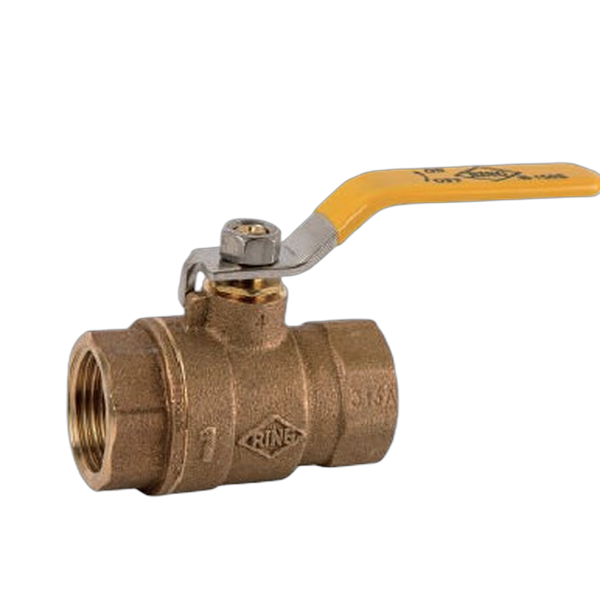

零件材質
| 零件PART | 材質MATERIAL | |
|---|---|---|
| 閥體 | Body | Cast Bronze |
| 閥蓋 | Bonnet | Cast Bronze |
| 閥桿 | Stem | Brass |
| 閥球 | Ball | Brass(Plated Ni+Cr) |
| 球座 | Ball seat | PTFE |
| 把手 | Handle | Stainless steel |
最高工作壓力
| 120°C常溫之水、油、氣 / 120°C Normal Temp. water oil. | 150S/600CWP 42(28) kgf/cm² |
| 閥體測試 / Body test | 63(42) kgf/cm² (HYD.) |
| 閥座測試 / Seat test | 6 kgf/cm² (AIR) |

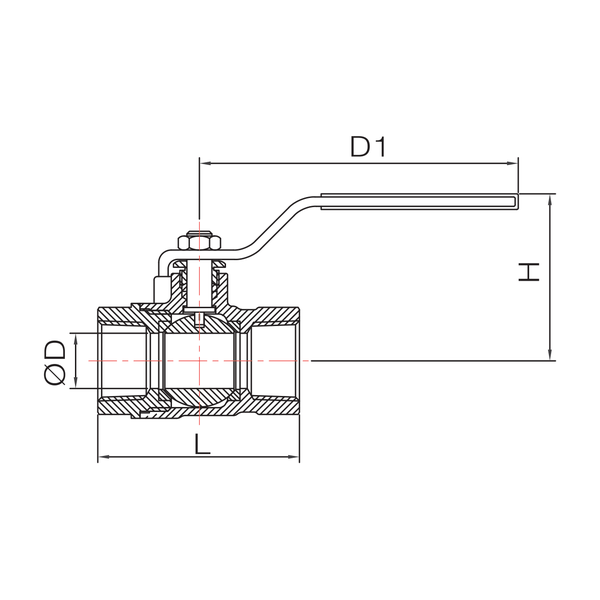

尺寸表
| 尺寸 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 |
|---|---|---|---|---|---|---|---|---|---|---|
| L | 47 | 47 | 58 | 65 | 79 | 86 | 93 | 111 | 143 | 161 |
| H | 46 | 46 | 46 | 55 | 60 | 66 | 72 | 76.5 | 101 | 114 |
| D1 | 83 | 83 | 83 | 103 | 103 | 103 | 158 | 158 | 158 | 210 |
| ØD | 10 | 10 | 12.7 | 17.7 | 22.3 | 25.4 | 31.8 | 38.1 | 50.8 | 63.5 |
單位:mm(±2mm)
Standard port, Blowout-proof stem, Anti-leakage device, Threaded ends；註:( )括號內之壓力標示,係指2½",3"之產品；註:不適用於空調冷卻水系統。
