150S/600W.O.G

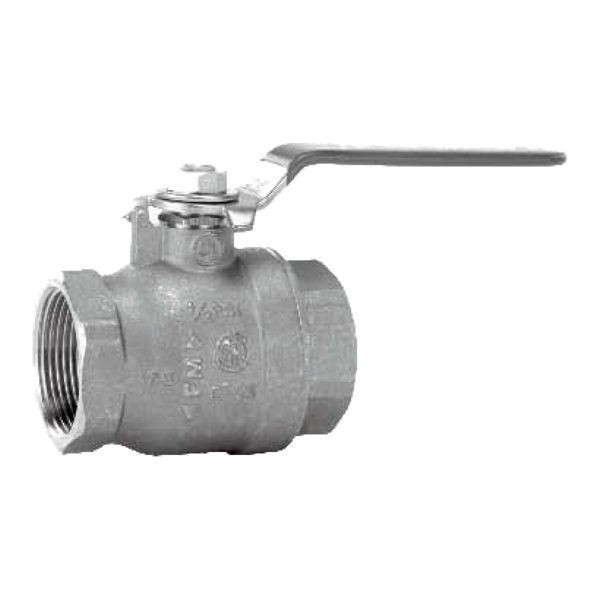

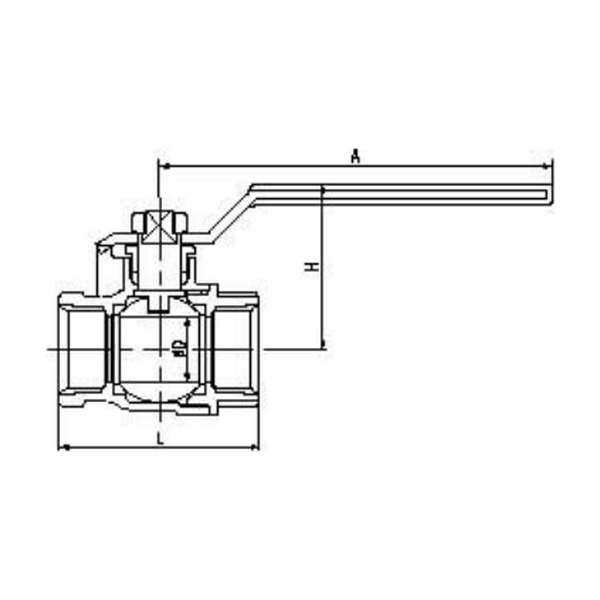

尺寸表
註: FS-301CxC 套焊式
| 尺寸 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 |
|---|---|---|---|---|---|---|---|---|
| L | 54 | 63 | 76 | 85 | 92 | 108 | 131 | 150 |
| H | 38 | 47 | 52 | 60 | 65 | 75 | 85 | 94 |
| D | 12.7 | 19 | 25 | 32 | 38 | 50 | 63 | 75 |
| A | 80 | 110 | 110 | 130 | 130 | 200 | 200 | 200 |
單位/mm
試壓
| 閥體 | 閥座 |
|---|---|
| 63.0kg f/cm²水壓 或 6kg/cm²空氣壓 |
63.0kg f/cm²水壓 或 6kg/cm²空氣壓 |
零件材質
| 零件PART | 材質MATERIAL | |
|---|---|---|
| 閥體 BODY | CAST BRONZE | BC |
| 迫緊壓蓋 PACKING CAP | BRASS | C3604B |
| 迫緊 PACKING | PTFE | PTFE |
| 閥桿 STEM | BRASS | C3604B |
| 銅球 BALL | BRASS | C3771BE |
| 把手 HANDWHEEL | STAINLESS STEEL | SUS304(1/2"~1 1/2") |
| DUCTILE | FCD(2"~3") | |
