300PSI

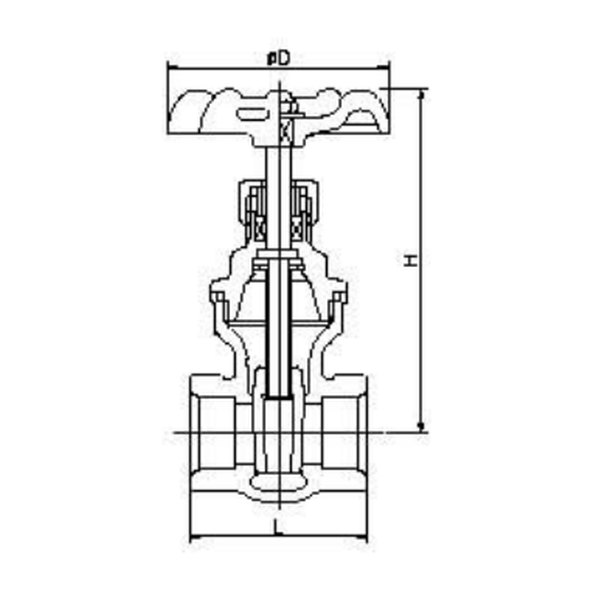

尺寸表
固溶化熱處理 CNS4000 G3092
| 尺寸 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 |
|---|---|---|---|---|---|---|---|
| L | 55 | 56 | 64.5 | 73 | 79 | 86.5 | 115 |
| H | 95 | 96 | 113 | 130 | 140 | 164 | 220 |
| D | 62 | 62 | 75 | 83 | 83 | 95 | 60 |
單位/mm
試壓
| 閥體 | 閥座 |
|---|---|
| 42.0kg f/cm²水壓 或 6kg/cm²空氣壓 |
32kg f/cm²水壓 或 6kg/cm²空氣壓 |
零件材質
| 零件PART | 材質MATERIAL | |
|---|---|---|
| 閥體 BODY | STAINLESS STEEL | CF8M |
| 閥蓋 BONNET | STAINLESS STEEL | CF8M |
| 閥桿 STEM | STAINLESS STEEL | SUS316 |
| 閥盤 DISC | STAINLESS STEEL | CF8M |
| 迫緊螺帽 P/N | STAINLESS STEEL | CF8M |
| 迫緊 PACKING | PTFE | PTFE |
| 手輪 HANDWHEEL | STAINLESS STEEL | SUS |
