JIS-10K

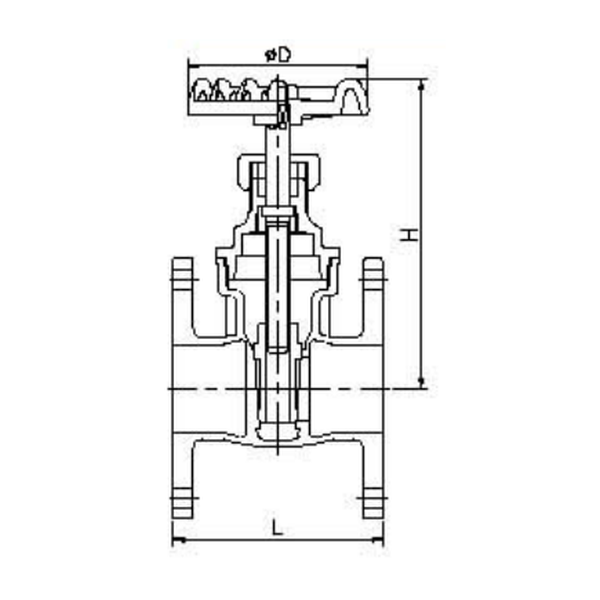

尺寸表
| 尺寸 | 2 | 2 1/2 | 3 | 4 |
|---|---|---|---|---|
| L | 115 | 128 | 142 | 165 |
| H | 145 | 190 | 223 | 260 |
| D | 85 | 105 | 120 | 130 |
單位/mm
試壓
| 閥體 | 閥座 |
|---|---|
| 20.0kg f/cm²水壓 或 6kg/cm²空氣壓 |
15.0kg f/cm²水壓 或 6kg/cm²空氣壓 |
零件材質
| 零件PART | 材質MATERIAL | |
|---|---|---|
| 閥體 BODY | CAST BRONZE | BC |
| 閥蓋 BONNET | CAST BRONZE | BC |
| 閥盤 DISC | CAST BRONZE | BC |
| 心桿 STEM | BRASS | C3604B |
| 迫緊螺帽 P/N | BRASS | C3604B |
| 心桿迫緊 PACKING | TEFLON | PTFE |
| 手輪 HANDWHEEL | CAST IRON | FC20 |
