125S/200W.O.G

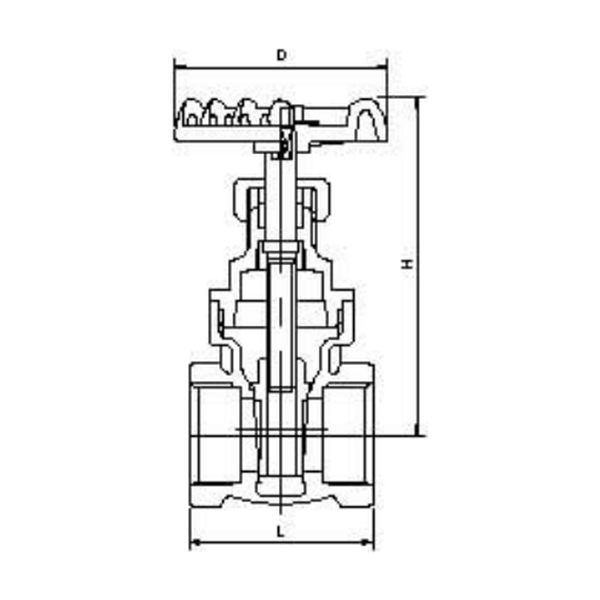

尺寸表
| 尺寸 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 |
|---|---|---|---|---|---|---|---|---|---|
| L | 42 | 48 | 52 | 59 | 63 | 72 | 89 | 101 | 116 |
| H | 73 | 83 | 95 | 114 | 123 | 148 | 183 | 210 | 260 |
| D | 54 | 54 | 61 | 77 | 77 | 83 | 105 | 112 | 132 |
單位/mm
試壓
| 閥體 | 閥座 |
|---|---|
| 17.0kg f/cm²水壓 或 6kg/cm²空氣壓 |
13.0kg f/cm²水壓 或 6kg/cm²空氣壓 |
零件材質
| 零件PART | 材質MATERIAL | |
|---|---|---|
| 閥體 BODY | CAST BRONZE | BC |
| 閥蓋 BONNET | CAST BRONZE | BC |
| 閥桿 STEM | BRASS | C3604B |
| 閥盤 DISC | CAST BRONZE | BC |
| 迫緊螺帽 P/N | BRASS | C3604B |
| 迫緊 PACKING | GRAPHITE | NBR |
| 手輪 HANDWHEEL | ZINCALLOY | B86 ADC12 |
